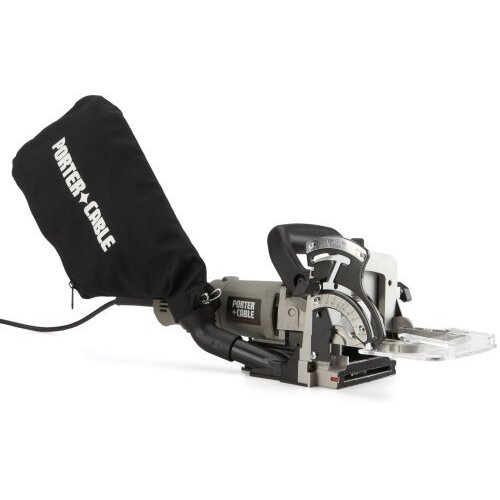

Porter Cable 557 Deluxe Plate Joiner Kit

• The micro height-adjust knob allows precise biscuit placement
• The powerful 7.5 amp motor delivers smooth, accurate cuts
• Includes 2- and 4-inch diameter blades for standard and face frame biscuits
• The unique fence adjusts from 0 to 135 degrees to ensure accurate mitered joints
• The top handle is attached directly to the fence for maximum stability

Porter Cable 557 7.5 Amp, 120 VAC only, 10,000 RPM. 1" O.D. dust port accepts standard bag or can be connected to a vacuum. Fence tilts from 0° to 135° with positive adjustable stop at 90°. Precise micro height-adjustment knob. Lock-on trigger. Includes both 2" and 4" diameter blades for standard and face-frame biscuits. Height scale accurate at any angle. Seven-position rotating depth stop for FF, #0, #10, #20, Simplex, Duplex, and Max (#6) biscuits. Spindle lock feature allows for single wrench bit changes. Bale handle attached to fence, not motor, for greater stability and added control during cuts. Plate joiner, 2" blade #5559, 4" blade #5558, centering plate #888776, dust bag #883175, chip deflector #886490, Allen wrench #891869, carrying case, and operating manual. Power: 120 VAC, 25-60 HZ. Amps: 7.0 Amps. Speed: 10,000 rpm. Blade Type: 6-Tooth (CT) & 4-Tooth (CT). Blade Size: 2" & 4". Height: 7". Net Weight: 7 1/2 lbs. Shipping Weight: 13-1/2 lbs. Biscuits Accepted: FF, #0, #10, #20, Simplex, Duplex, and #6.
