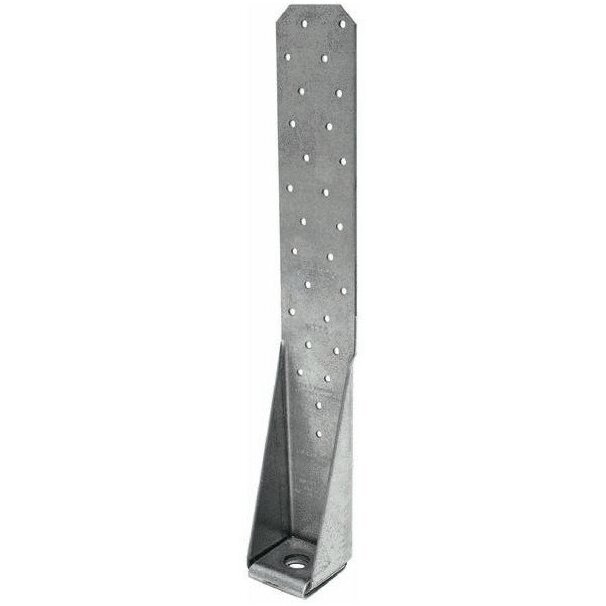

Simpson Strong Tie HTT5 16" Heavy Tension Tie

• 11 Gauge

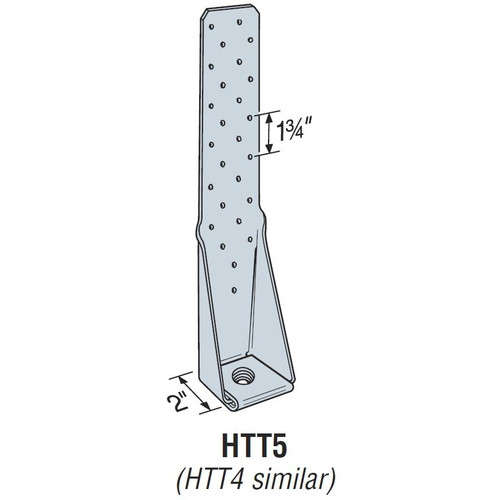

• 2-1/2"W x 16"L x 1-3/8"CL
• 7/16" Seat Thickness and 5/8" Anchor Bolt Diameter
• Use with 10d x 1-1/2" or 16d x 2-1/2" Fasteners
• Zinc galvanized finish containing 0.90oz of zinc per square foot of surface area (total both sides)

NEW! The HTT4 and HTT5 are the latest generation of tension ties. They feature an optimized nailing pattern which results in better performance with less deflection. Designed to meet new code standards, the HTT4 and HTT5 offer higher loads than their predecessors the HTT16 and HTT22. For an added benefit, the HTT5 installs with 6 fewer nails than the HTT22.
