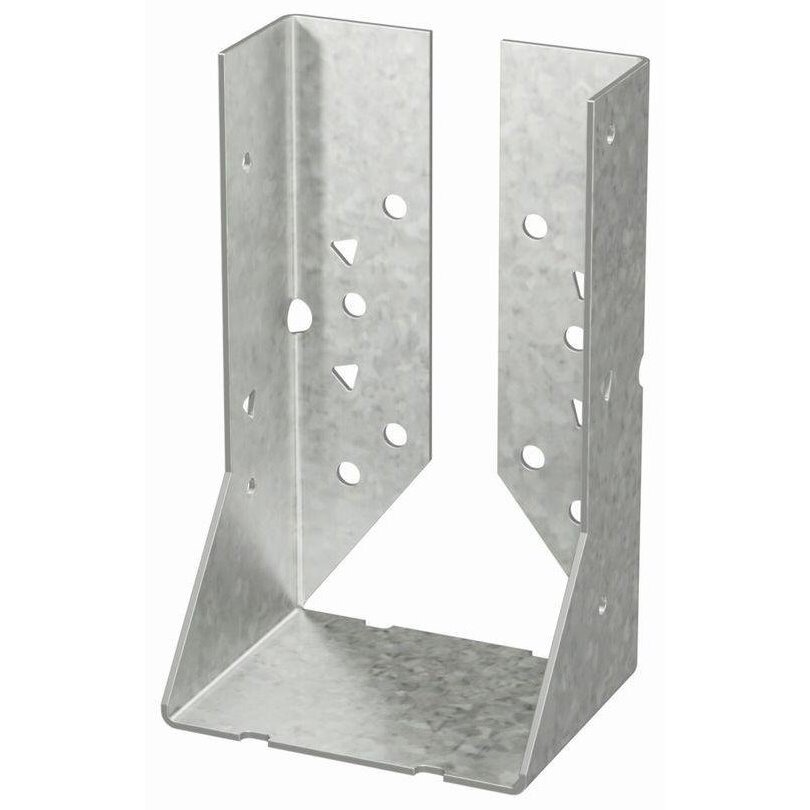

Simpson Strong Tie HUC26-2 Double 2x6 Heavy Duty Joist Hanger Concealed/Reverse Flange

• 14 Gauge
• 3-1/8"W x 5-3/8"H x 2-1/2"B
• Use with 16d Fasteners in the face and 10d in the Joist
• Zinc galvanized finish containing 0.90oz of zinc per square foot of surface area (total both sides)

All hangers in this series have double-shear nailing. This patented innovation distributes the load through two points on each joist nail for greater strength. It also allows the use of fewer nails, faster installation, and the use of common nails for all connections. (Do not bend or remove tabs). Most models have triangle and round holes. To achieve maximum loads, fill both round and triangle holes with common nails.
