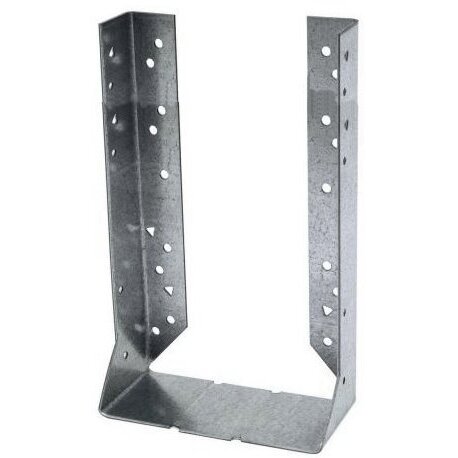

Simpson Strong Tie HUC612Z 6x12 Heavy Duty Joist Hanger Concealed/Reverse Flange Z-Max Finish

• 14 Gauge
• 5-1/2"W x 9-3/8"H x 2-1/2"B
• Use with 16d Fasteners in the face and 10d in the Joist
• Z-Max:Hot Dip Galvanized(G185) 1.85oz of zinc per sq-ft surface area per ASTM A653 total both sides

All hangers in this series have double-shear nailing. This patented innovation distributes the load through two points on each joist nail for greater strength. It also allows the use of fewer nails, faster installation, and the use of common nails for all connections. (Do not bend or remove tabs). Most models have triangle and round holes. To achieve maximum loads, fill both round and triangle holes with common nails.
