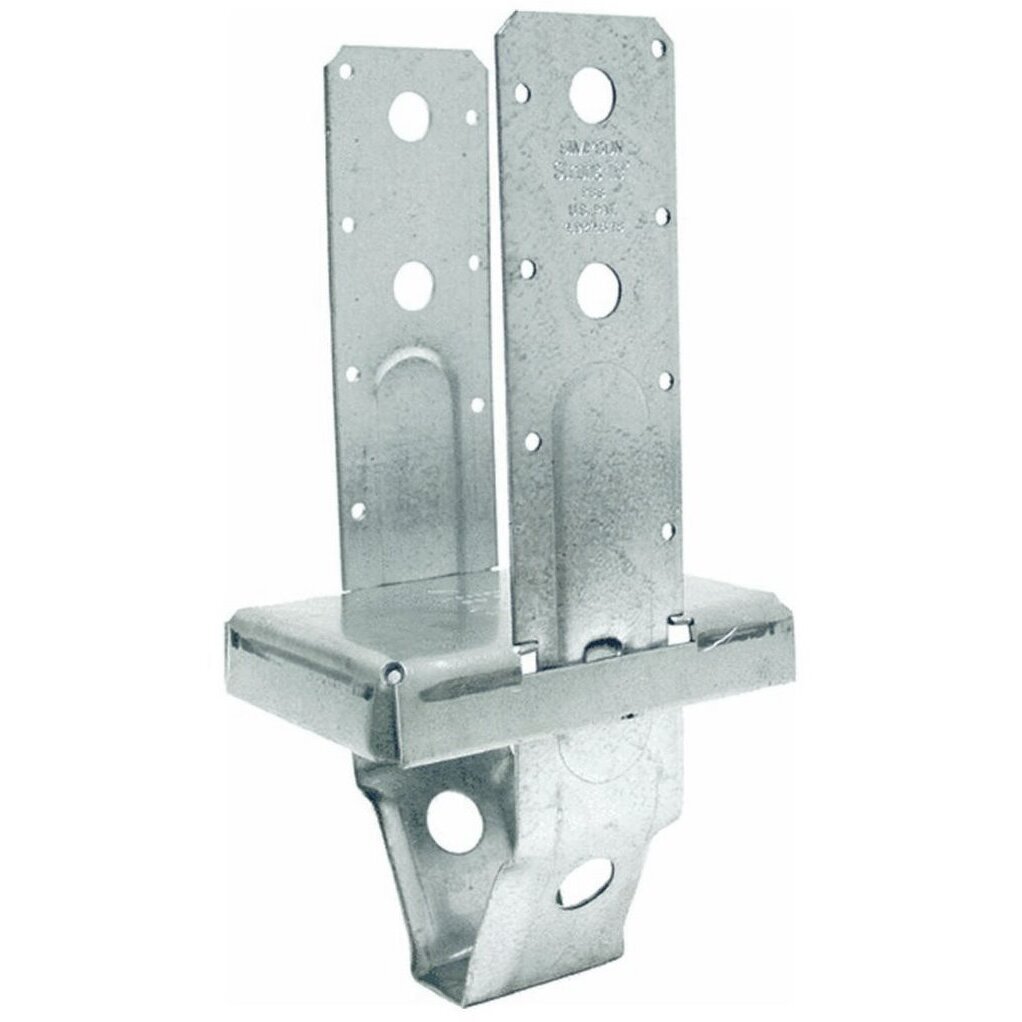

Simpson Strong Tie PBS46 4 x 6 Post Standoff Base

• 14 Gauge Strap
• 12 Gauge Base
• 3-9/16"W x 5-7/16"L x 6-9/16"H
• Use with 16d Fasteners, 1/2" Bolts
• Zinc galvanized finish containing 0.90oz of zinc per square foot of surface area (total both sides)

The PBS features a 1" standoff height. It reduces the potential for decay at post and column ends. Embed into wet concrete up to the bottom of the 1" standoff base plate. A 2" minimum side cover is required to obtain the full load. Holes in the bottom of the straps allow for free concrete flow.
