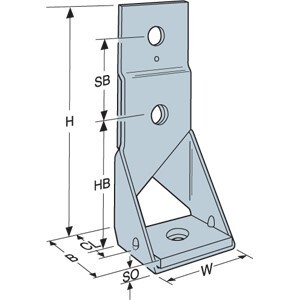

Simpson Strong Tie HD2AHDG 8" Hold Down HDG

• 2-3/4"W x 8"H x 2-9/16"B
• 7 Gauge Base, 12 Gauge Body
• Load Transfer Plate eliminates the need for a seat washer.
• 5/8" Anchor Bolt Diameter
• HDG - Hot Dipped Galvanized

All HDAs and the HD15 are self-jigging, ensuring code-required minimum 7 bolt diameter spacing from the end of the wood member to the center of the first bolt hole per NDS-2005 Section 11.5.1. HD6A, HD8A, HD10A and HD14A's seat design allows greater installation adjustability. An overall width of 3 1/4" for the HD6A, HD8A and HD10A, and 3 1/2" for the HD14A provides an easy fit in a standard 2x4 stud wall.
