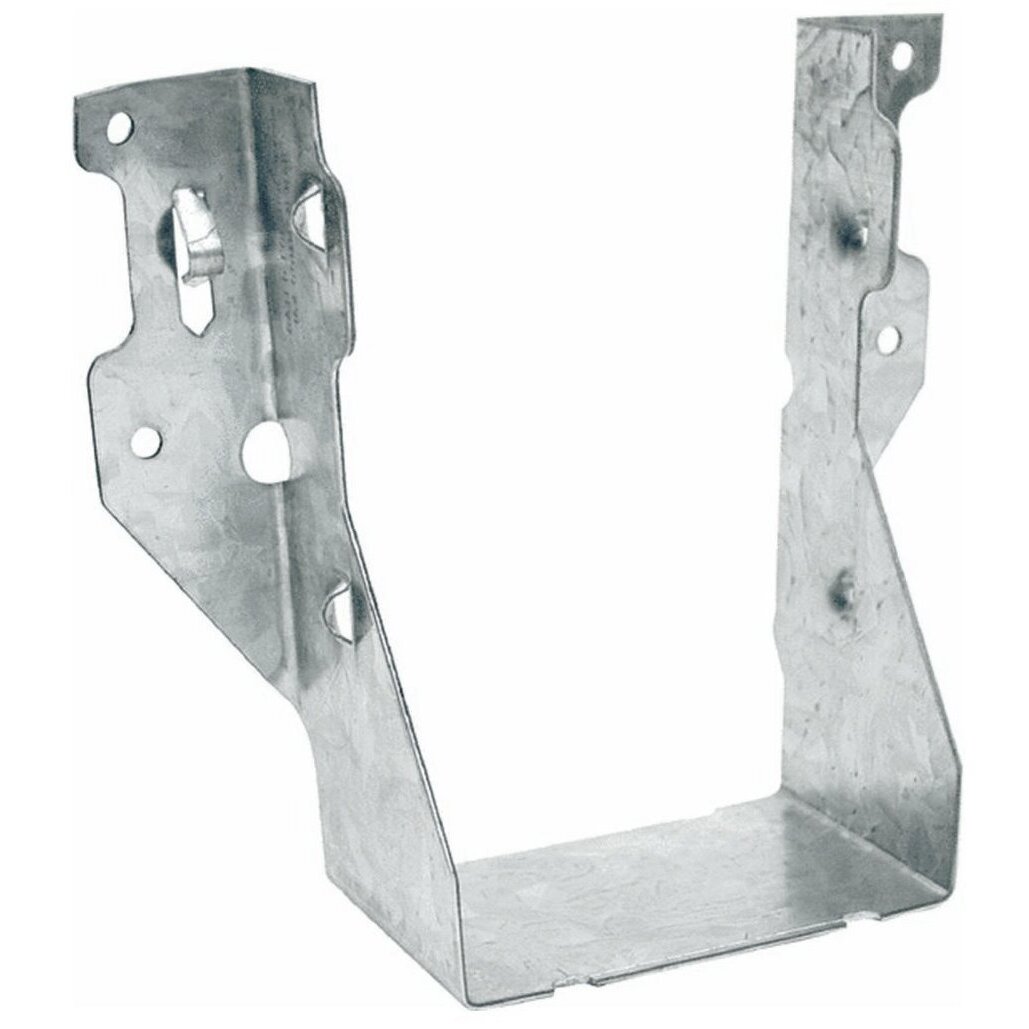

Simpson Strong Tie LUS26-2 Double 2x6 Light Double Shear Joist Hanger

• 4-9/16" Minimum Heel Height
• 18 Gauge

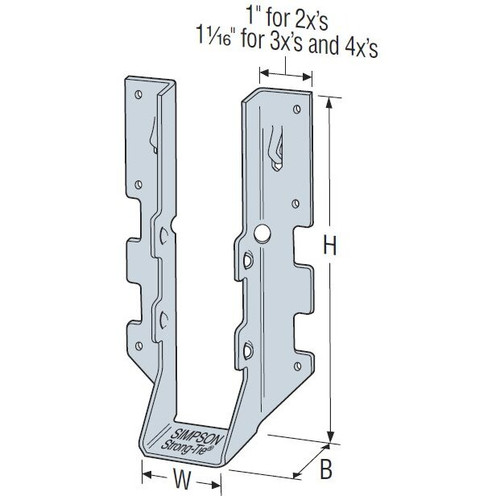

• 3-1/8"W x 4-7/8"H x 2"B
• Use with 16d Fasteners
• Zinc galvanized finish containing 0.90oz of zinc per square foot of surface area (total both sides)

All hangers in this series have double shear nailing - an innovation that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation, and the use of all common nails for the same connection.
