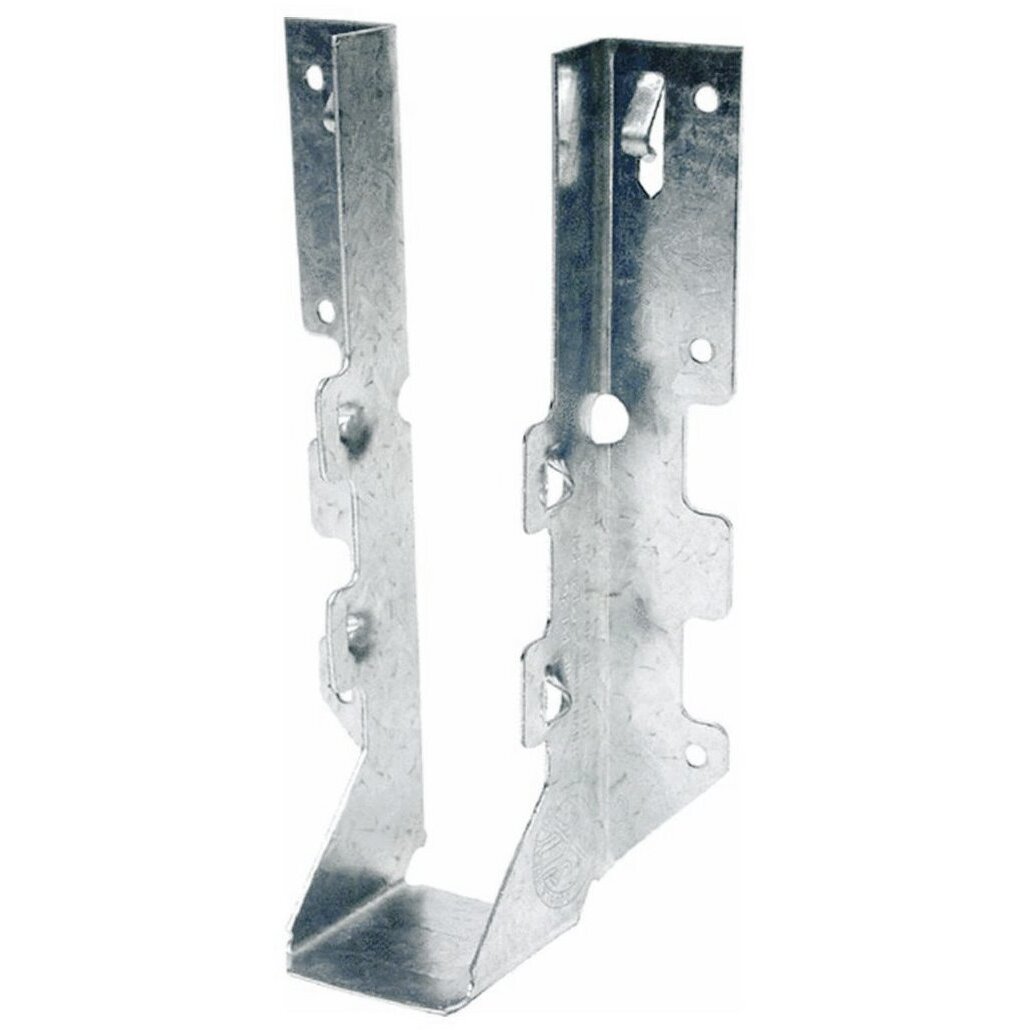

Simpson Strong Tie LUS28Z 2x8 Light Double Shear Joist Hanger Z-Max Finish

• 4-3/16" Minimum Heel Height
• 18 Gauge
• 1-9/16"W x 6-5/8"H x 1-3/4"B
• Use with 10d Fasteners
• Z-Max:Hot Dip Galvanized(G185) 1.85oz of zinc per sq-ft surface area per ASTM A653 total both sides

All hangers in this series have double shear nailing - an innovation that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation, and the use of all common nails for the same connection.
