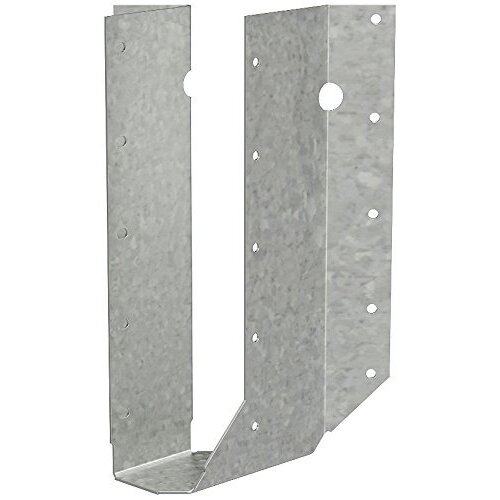

Simpson Strong Tie SUL210 2 x 10 Face Mount Joist Hanger Skewed 45° Left

• 16 Gauge

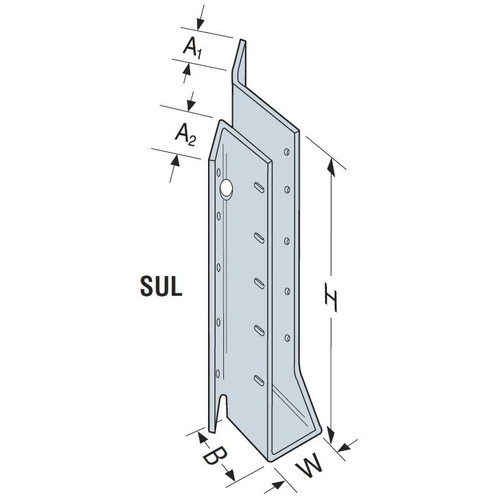

• 1-9/16"W x 8"H x 2"B x 1-1/8"a1 x 1-5/16"a2
• Use with 16d fasteners in the Face , 10d x 1-1/2" in Joist
• Zinc galvanized finish containing 0.90oz of zinc per square foot of surface area (total both sides)

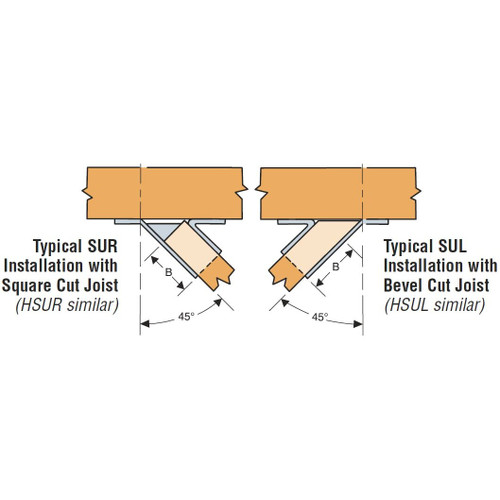

The SU and HSU series of hangers are skewed 45 ° left or right. Angled nail slots direct nails for proper installation. The full range of 45° skewed hangers feature obround nail holes on the acute side allowing nails to be easily installed parallel to the header and joist. Installation is further simplified with no required bevel cuts.
